Type SMP Fluid Coupling

Description

A constant-fill coupling built for belt drives.

Fluidomat-SMP are constant-fill, fixed-speed fluid couplings for belt drive, offering a wide range of pulley diameters. They deliver the soft-start, load-limiting and shock-absorbing benefits of fluid coupling drive in a compact pulley-mounted form.

Each SMP has a built-in delayfil chamber that enables quick decay of the motor starting current as the motor accelerates to 90% speed faster. The range is suitable for two consecutive starts from hot and three from cold, with a fusible plug blow-off temperature of 130°C as standard (160°C optional). A vertical-type SMP fluid coupling is also available.

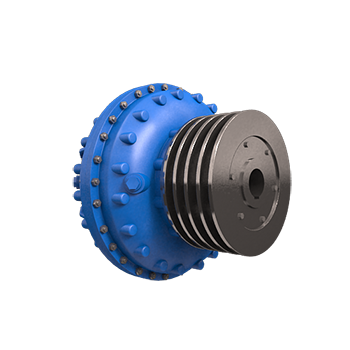

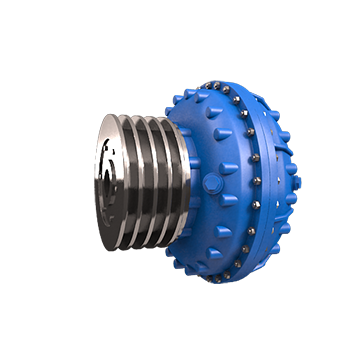

Fluidomat Type SMP pulley-type fluid coupling

Key data

450

KW max rating (SMP-11R)

11

Models, 1R–11R

130°C

Fusible plug (160°C optional)

2 + 3

Starts hot / cold

Request a quote Download SMP catalogue

Product specifications

Features at a glance

Fluid couplings for belt drive offering a wide range of pulley diameters
Built-in delayfil chamber for quick decay of motor starting current
Motor accelerates to 90% speed faster, easing the drive on start-up

Suitable for two consecutive starts from hot and three from cold
Fusible plug blow-off temperature 130°C standard, 160°C optional
Vertical-type SMP fluid coupling available for special drive layouts

Selection data

Rating table & specifications — SMP

Maximum ratings in KW at different input speeds (RPM), with overall dimensions (mm), dry weight, oil filling and coupling thread by model. For final selection, please consult Fluidomat application engineering.

Rating table & technical specification / dimension table for SMP
Model SMP	Max. ratings (KW) at input speed (RPM)						Ø A	B	Ø d1 max	l1	Dry wt (kg)	Max oil (L)	Threads M
Model SMP	750	900	1000	1200	1500	1800	Ø A	B	Ø d1 max	l1	Dry wt (kg)	Max oil (L)	Threads M
1R	0.6	1	1.5	2.5	5	8	280	200	38	91	18	2.2	3/4"
2R	0.9	1.6	2.2	3.8	7.5	12	310	205	38	91	25	2.8	3/4"
3R	1.2	2.1	3	5	10	15	330	262	42	110	30	3.3	3/4"
4R	2.3	4	5.5	9.5	18.5	25	360	284	42	110	35	4.1	3/4"
5R	4.1	7	10	17	30	38	395	331	65	142	46	6.5	1"
6R	5.6	10	13.3	23	45	60	420	374	65	142	65	8.3	1 ½"
7R	8.3	15	20	34.6	67.5	85	465	395	75	142	92	11.1	1 ½"
8R	11.2	19	26	46	90	120	505	430	85	142	115	14.6	1 ½"
8B-R	16.6	29	39.4	68	133	180	553	495	90	155	121	18	1 ½"
9R	19	33	45	78	152	200	570	512	90	170	127	22	1 ½"
10R	36	62	85	147	250	325	630	535	110	210	220	28.5	1 ¾"
11R	87	150	205	355	450	—	740	590	110	210	275	44.8	Ø50-8P Square Thread

Ratings are for maximum pulley diameter in direct pulley mounting. The minimum bore Ød1 should be greater than the withdrawal bolt dia. M by at least 3 mm. Other groove sections can be provided on request.

Selection data

Pulley details

Direct-pulley-mounting and pulley Type-A options per model — maximum number of grooves, PCD (max/min) and key dimension ‘K’ ± 1.5, by belt section.

SMP pulley details — direct pulley mounting & pulley Type-A
Model	Direct pulley mounting					Pulley Type-A
	Pulley groove ‘SEC’	Max. no. of grooves	‘D1’ PCD		‘K’ ± 1.5	Pulley groove ‘SEC’	Max. no. of grooves	‘D2’ PCD		‘K’ ± 1.5
	Pulley groove ‘SEC’	Max. no. of grooves	Max	Min	‘K’ ± 1.5	Pulley groove ‘SEC’	Max. no. of grooves	Max	Min	‘K’ ± 1.5
SMP-1R	SPA/A	3	260	140	22	SPA/A	3	260	160	17
	SPB/B	2	260	146	25	SPB/B	2	260	160	19
	SPC/C	1	260	156	30	SPC/C	1	260	175	22
SMP-2R	SPA/A	4	180	140	18	SPA/A	4	300	173	14
	SPB/B	3	180	147	20	SPB/B	3	300	180	15
	SPC/C	2	180	157	25	SPC/C	2	300	190	21
SMP-3R & SMP-4R	SPB	3	160	145	26	A	5	260	160	18
	SPB	4	140	140	26	B	4	260	165	21
	B	4	140	140	26	C	3	260	170	25
	B	3	160	145	26	SPA	5	260	160	18
	C	2	140	140	30	SPB	4	260	165	21
	C	2	160	145	31	SPC	3	260	170	26
SMP-5R	B	5	180	175	23	—	—	—	—	—
	C	3	200	185	27	B	5	325	209	21
	C	4	185	180	27	C	4	325	215	25
	SPB	5	180	180	23	—	—	—	—	—
	SPC	3	200	195	27	SPB	5	325	213	21
	SPC	4	190	190	27	SPC	4	325	223	25
SMP-6R	B	6	200	175	34	B	6	350	220	22
	B	6	225	210	32	C	5	350	225	27
	C	5	200	180	32	SPB	6	350	222	22
	C	5	225	215	30	SPC	5	350	232	27
	SPB	6	200	180	34	—	—	—	—	—
	SPB	6	225	215	32	—	—	—	—	—
	SPC	5	200	190	32	—	—	—	—	—
	SPC	5	225	225	30	—	—	—	—	—
SMP-7R	B	6	200	195	26	B	6	380	224	26
	C	5	224	205	30	C	5	380	245	30
	C	5	200	200	30	SPB	6	380	245	26
	SPB	6	205	200	26	SPC	5	380	240	30
	SPC	5	225	215	30	—	—	—	—	—
SMP-8R	B	8	250	240	20	B	8	420	260	18
	B	8	235	225	20	C	6	420	265	22
	C	6	250	240	24	SPB	8	420	265	18
	C	6	235	230	24	SPC	6	420	275	22
	SPB	8	250	240	20	—	—	—	—	—
	SPB	8	235	230	20	—	—	—	—	—
	SPC	6	250	240	24	—	—	—	—	—
	SPC	6	235	235	24	—	—	—	—	—
SMP-8B-R & SMP-9R	B	10	250	235	28	B	10	500	260	25
	C	8	250	240	32	C	8	500	265	29
	SPB	10	250	240	28	SPB	10	500	265	25
	SPC	8	250	250	32	SPC	8	500	275	29
SMP-10R	SPB/B	12	350	285	27	SPB/B	12	500	335	19
SMP-10R	SPC/C	8	345	295	32	SPC/C	9	500	345	23
SMP-11R	SPB	11	359	300	28	SPB	11	500	360	17
	SPC	8	369	310	33	SPC	8	500	370	22
	B	11	350	292	28	B	11	500	352	17
	C	8	355	300	33	C	8	500	360	22

Groove sections D, E, 3V, 5V & 8V can be provided on request.

Construction & diagrams

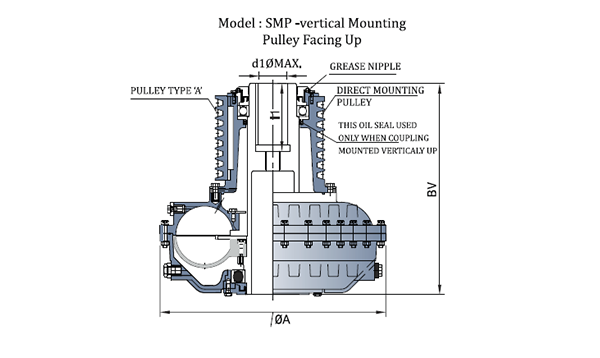

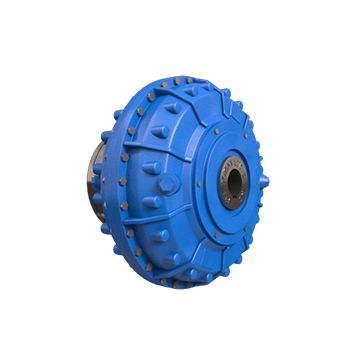

Diagrams & views
